HELIOSCREEN
All Seasons Novo Series

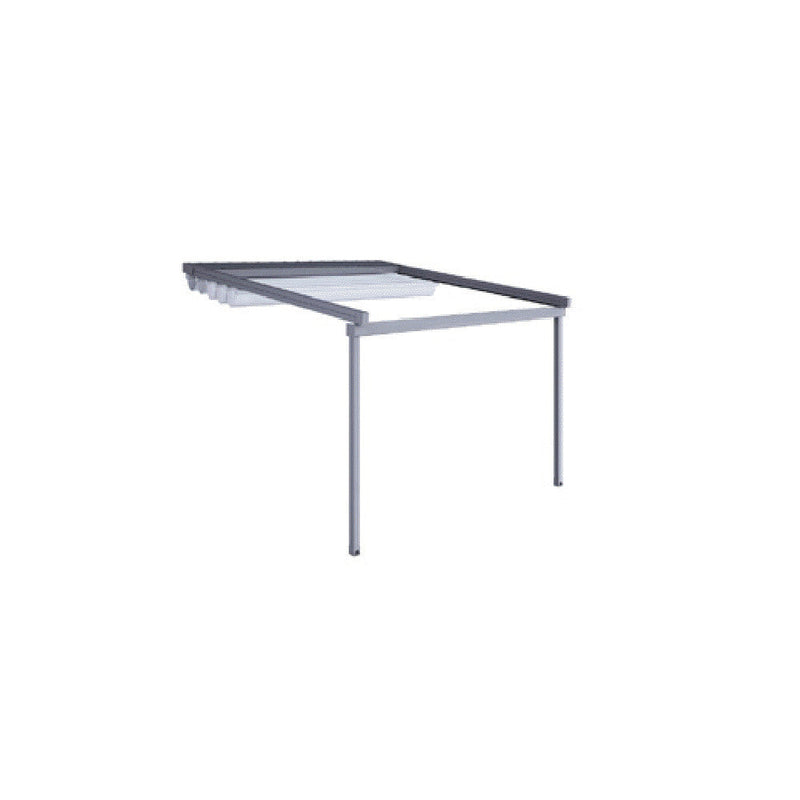

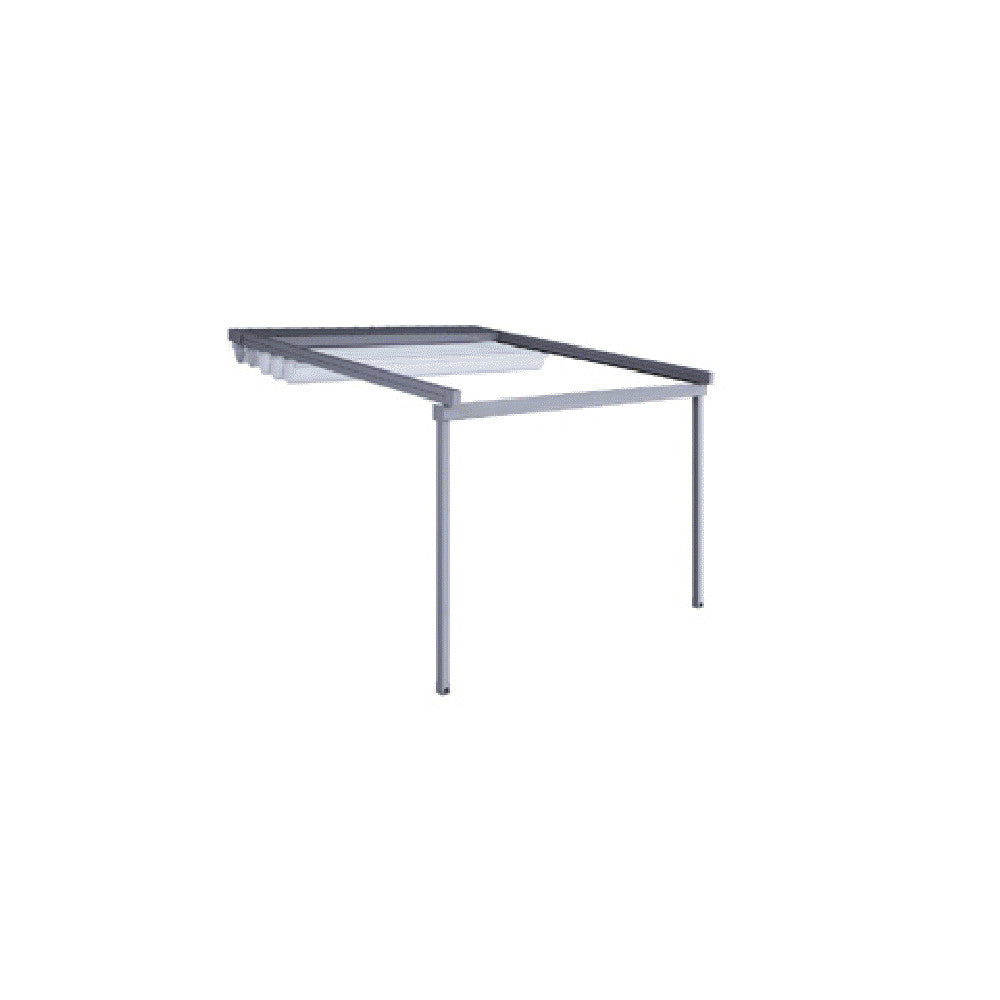

The Novo series is anchored onto an existing wall or structure and is installed with its own frame work, posts and integrated gutter system to offer motorised sun and rain protection for indoor / outdoor living. Available in custom-made sizes with a large range of mounting options these models can easily cover large areas in single systems or couple multiple systems side-by-side for greater flexibility.
Supplier: HELIOSCREEN
Country: Australia
:

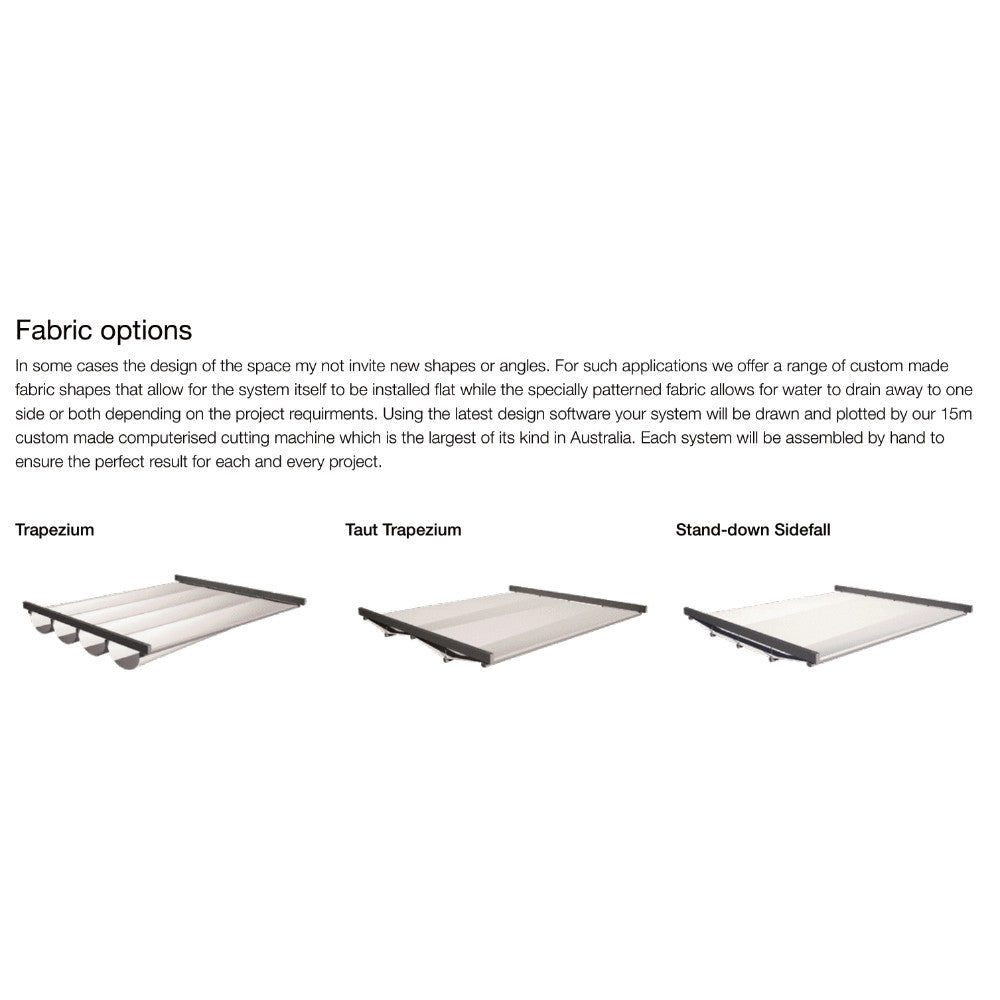

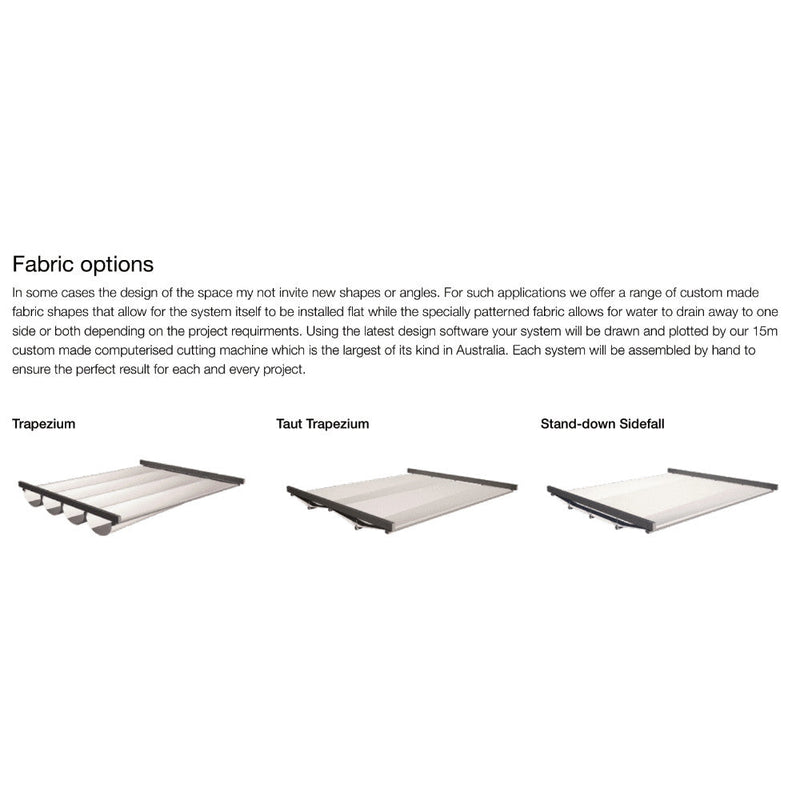

Fabric Options: Trapezium, Taut Trapezium, Stand-down Sidefall

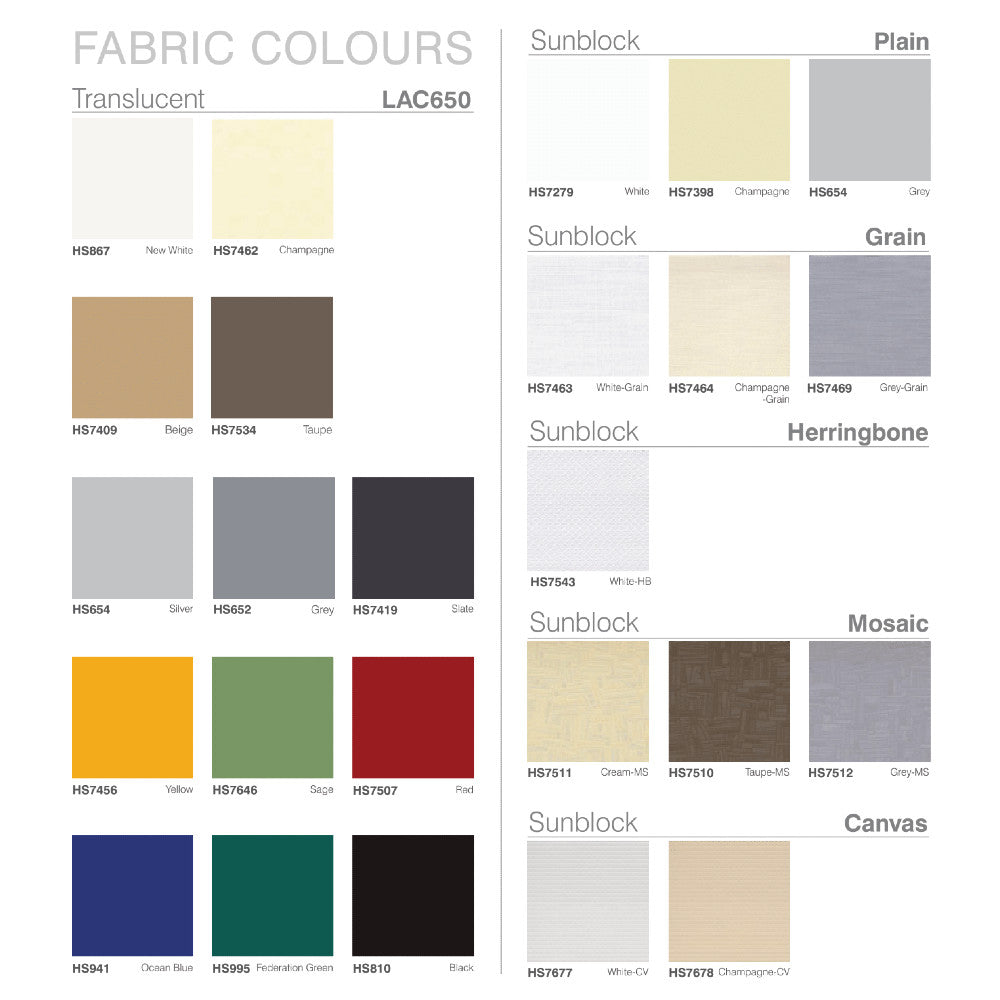

Fabric Colours: Translucent - New White, Champagne, Beige, Taupe, Silver, Grey, Slate, Yellow, Sage, Red, Ocean Blue, Federation Green, Black
: Sunblock - Plain White, Plain Champagne, Plain Grey, White Grain, Champagne Grain, Grey, Grain, White Herringbone, Cream Mosaic, Taupe Mosaic, Grey Mosaic, White Canvas, Champagne Canvas
Frame colours: Over 120 Dulux colours

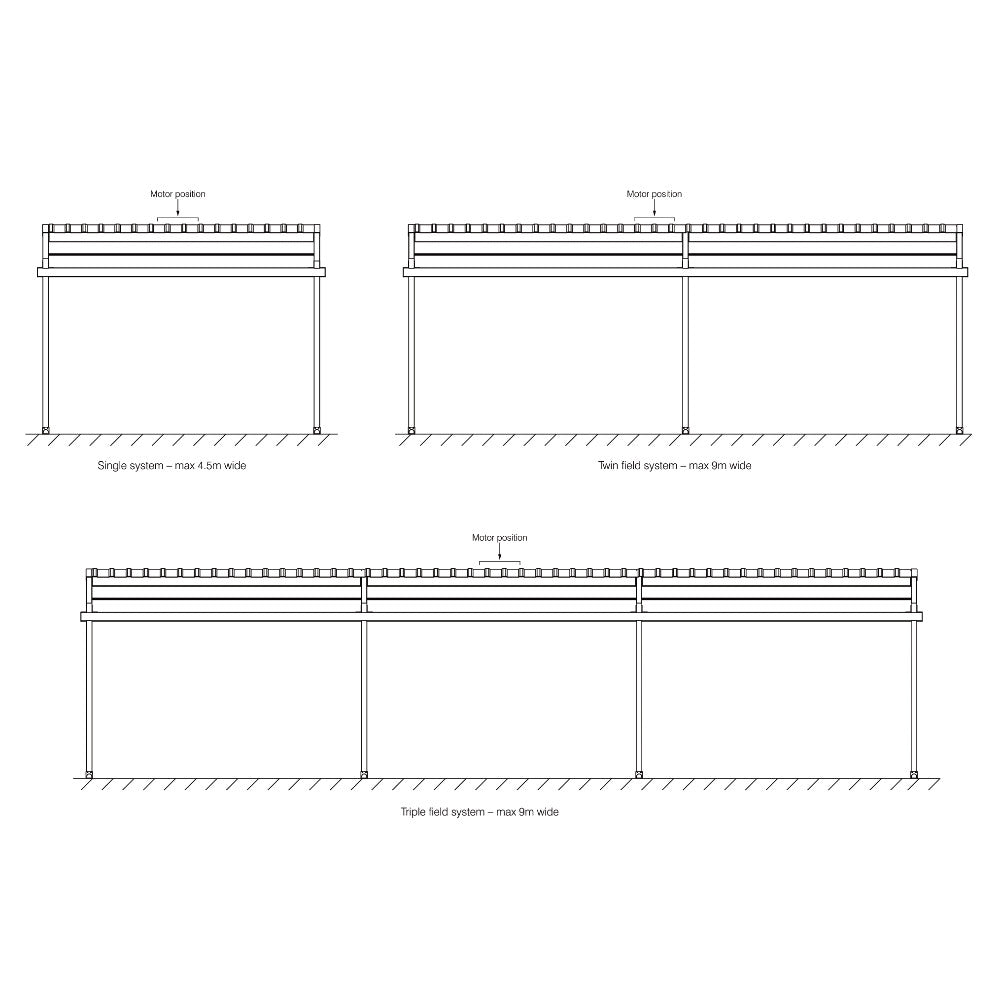

Field Options: Single, Double, Triple
:
Max projection: 7m / 10m
Max width of single field: 4.5m / 2 rafters
Max width of twin field: 9m / 3 rafters
Max width of triple field: 13m / 4 rafters
Max width coupled systems: Limitless

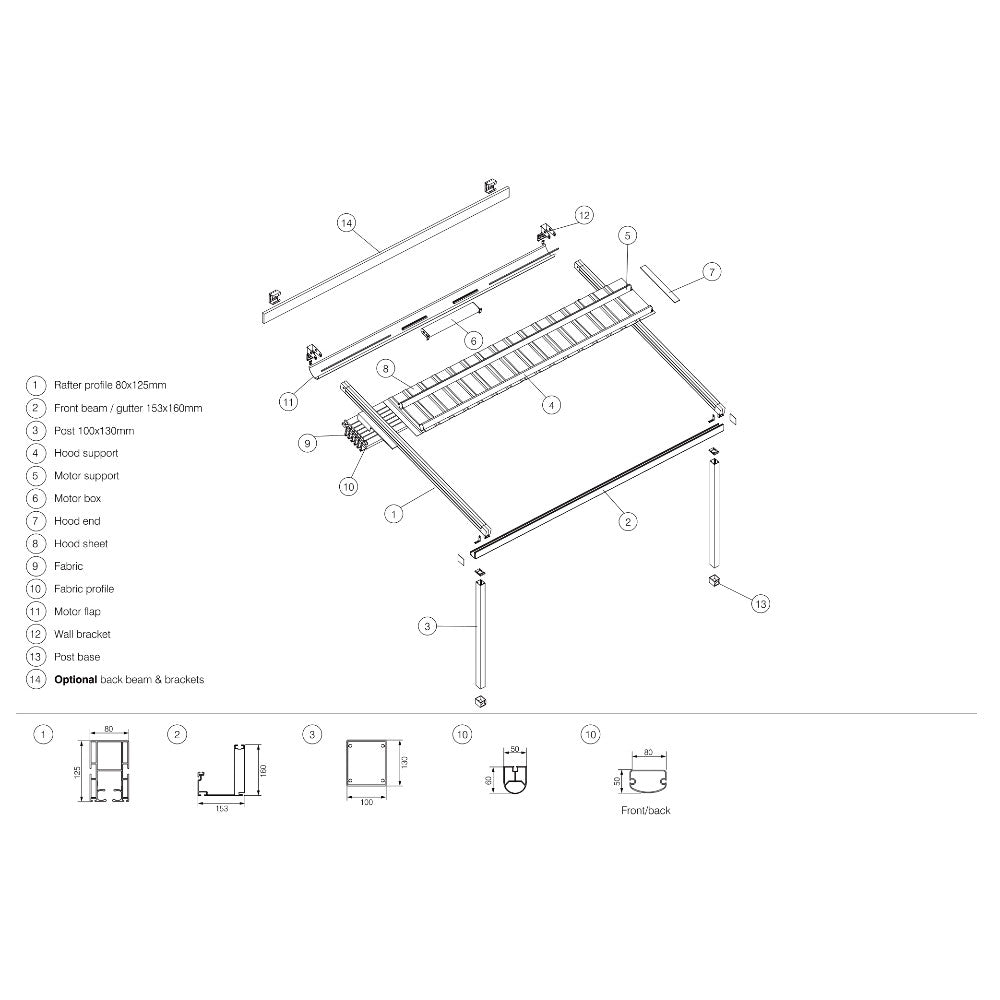

Rafter dimensions: 80x125mm
Post dimensions: 90x90mm
Fabric fold/stack depth: 550-1250mm
Fabric fold/stack height: 200-400mm
Motor system: 240V / 1.1-1.8Amps
Motor torque: 55-120 Nm
Control: Handheld remote / App
Wind resistance: 59km/h up to 237km/h (Wind rating can vary depending on system size, location and installation. Figures stated are ratings for max and min system sizes.)
:
SYSTEM OPTIONS:

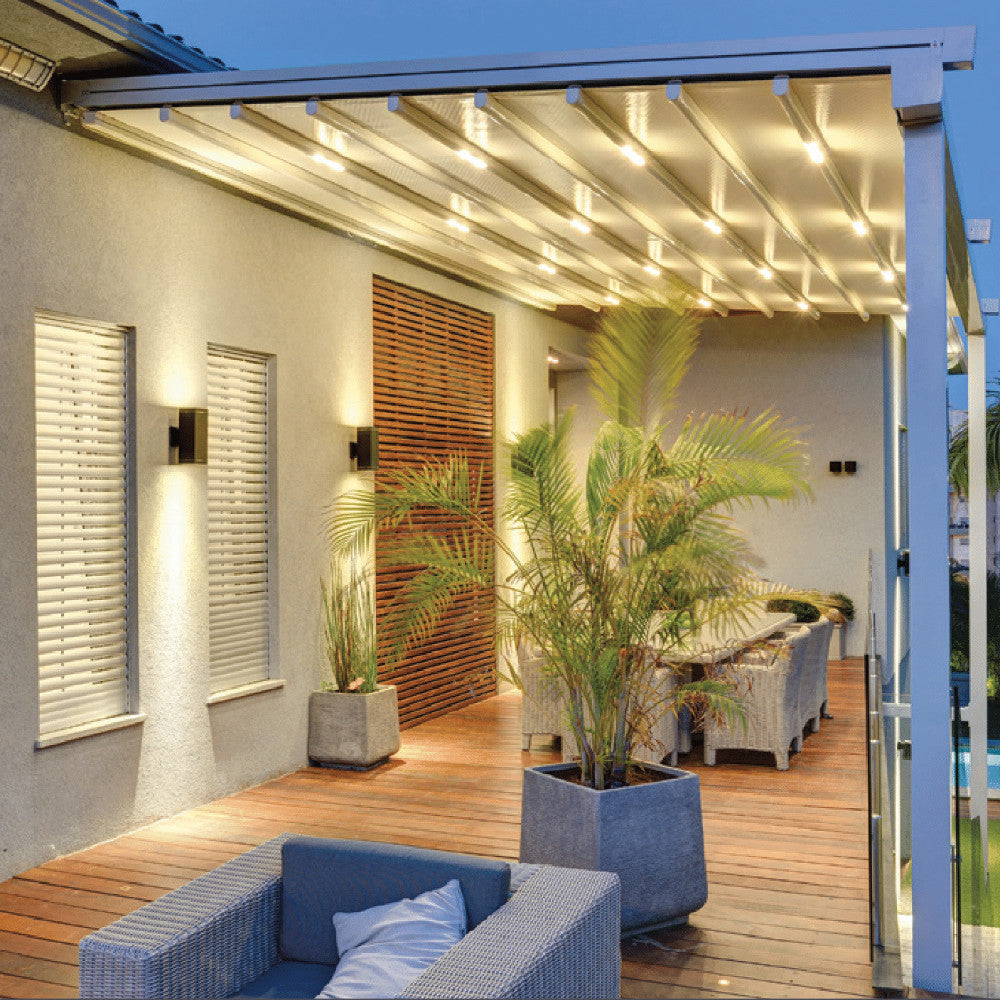

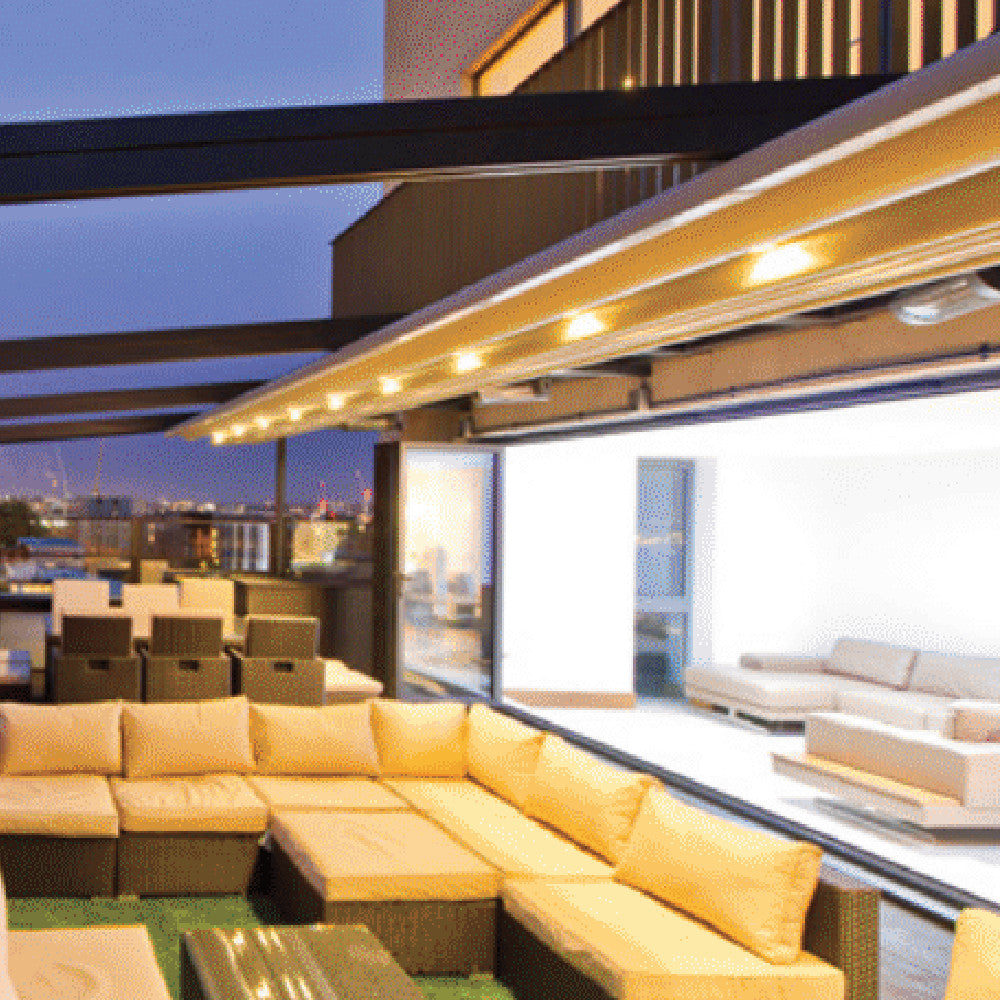

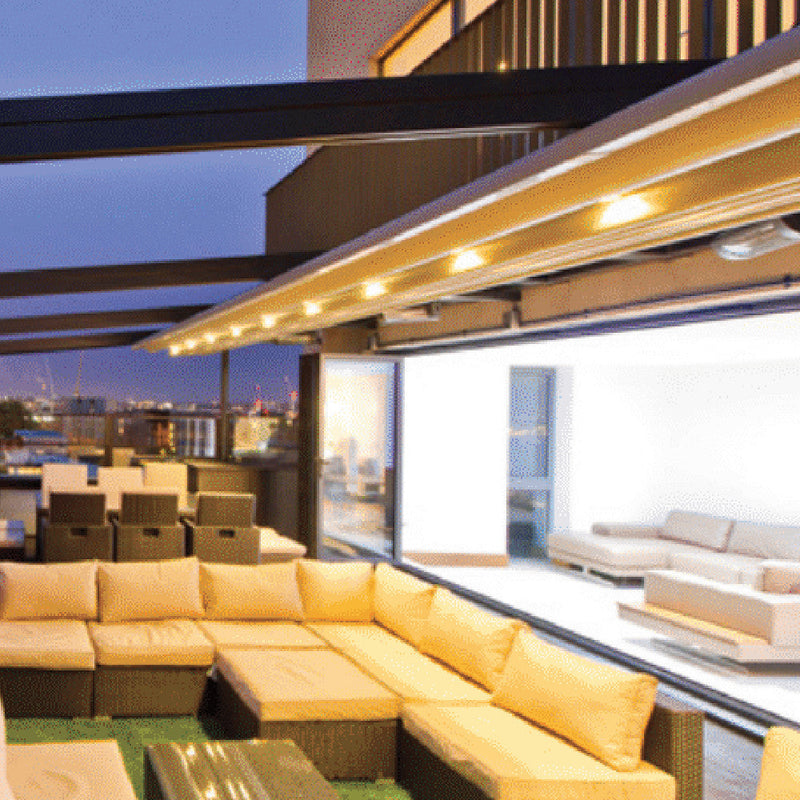

Lighting system: Integrated recessed LED lighting
Lighting control: Remote – Dimmer
Weather sensors: Wind / Rain
Curved model: N/A
Freestanding model: Yes
Customised variations: Yes
